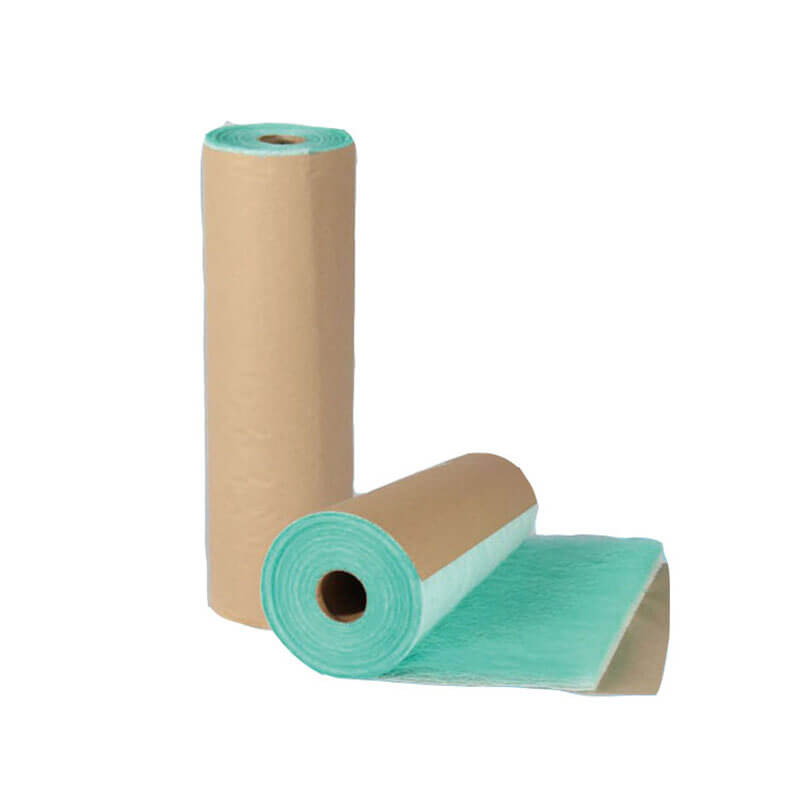

High-arrestance glass-fibre media for overspray capture and cleaner spray booth airflow.
Description
A high-arrestance filter made of high-strength glass fibre with gradual density.
Low compressibility helps the media maintain shape and purify airflow effectively.
The filter absorbs excess particles generated during spray-painting operations.
This supports reduced environmental pollution, cleaner recirculating air, and more environmentally friendly exhaust air.
Especially suitable for automotive and furniture paint spray booths and coating production lines.
Widely used for filtration in high-quality surface painting processes.
Provides high resistance and high efficiency in removing excess particles during painting, helping maintain more uniform air pressure.
A typical ecological filtration material for spray booth environments.
| Specification | Value |
|---|---|
| Model | AMS50 |
| Weight | 250 g/m2 |
| Thickness | 50 mm |
| Maximum Air Flow | 4 860 m3/hr |
| Initial Resistance | 15 Pa |
| Final Resistance | 250 Pa |
| Efficiency | 78.70% |
| Nominal Velocity | 1.35 m/s |
| Dust Holding Capacity | 3 560 g/m2 |
| Max. Working Temp. | 150C |
| Filtering Grade | G3/EU-3 DIN 24185 |
| Flame Resistance | F-1 DIN 53438 |
| Standard Size | 800 mm / 1 000 mm / 1 200 mm / 1 500 mm x 20 m |
Material safety and handling guidance for progressive-density paint arrestor media.
For pricing, delivery enquiries, or technical support regarding AMS50 Paint Arrestor in Cape Town, contact Artic Maintenance Services for more information.
