- Automatic condensate removal without manual draining.
- Adjustable timer settings to match system condensate load.
- Reliable and cost-effective condensate management solution.
- Suitable for a wide range of compressed air equipment.
- Simple installation and maintenance.
- Available in multiple voltage options.
ARTIC-22 and JORC MICDRAIN-COMBO Timer-Controlled Drain Valves
Adjustable timer-controlled condensate drainage for practical, economical compressed air system maintenance.
Product Description
ARTIC-22 and JORC MICDRAIN-COMBO
Timer-controlled condensate drains with adjustable discharge and interval settings for automatic drainage.
Both models use an electronic timer linked to a solenoid valve to discharge condensate at programmable intervals without manual intervention.
The timer settings allow operators to adjust pause time and valve opening duration to suit condensate load and operating conditions.
These drains are suited to filters, dryers, receiver vessels, drip legs, and after-coolers, making them practical for a broad range of compressed air installations.
MICDRAIN-COMBO Details

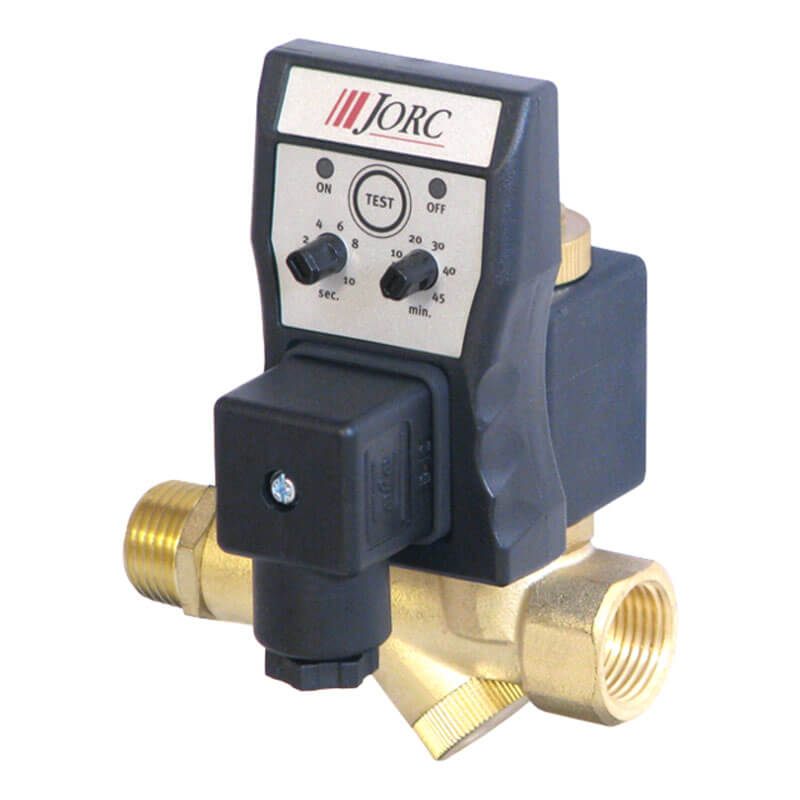

JORC MICDRAIN-COMBO Features
Compact direct-acting solenoid drain design for reliable drainage, including contaminated condensate conditions.
The MICDRAIN-COMBO uses a direct-acting solenoid valve with a large 4.0 mm orifice for effective condensate discharge.
Stainless steel operating components, integrated strainer, and integrated ball valve support dependable operation and straightforward servicing.
An LED indicator and TEST function provide quick visual status confirmation and manual discharge capability for inspection.
Operational Benefits
Engineering Features
- Electronic timer control for programmable drainage cycles.
- Direct-acting solenoid valve design for reliable operation.
- Large valve orifice supports effective condensate drainage.
- Integrated strainer protects the valve from debris.
- LED indicator confirms operating status.
- TEST function allows manual discharge for inspection.
- Compact and serviceable design.
Technical Specifications
| Specification | Details |
|---|---|
| Drain type | Electronic timer-controlled condensate drain |
| Discharge time | 0.5 to 10 seconds (adjustable) |
| Interval / pause time | 1 to 45 minutes (adjustable) |
| Maximum pressure | Up to 16 bar |
| Voltage options | 230 VAC, 115 VAC (others available) |
| Valve type | 2/2 way direct-acting solenoid valve |
| Valve orifice | 4.0 mm |
| Valve seals | FPM |
| Operating parts | Stainless steel |
| Inlet / outlet connections | 1/2 in + 1/4 in (dual inlet) / 1/2 in outlet |
| Integrated ball valve | Yes |
| Integrated strainer | Yes |
| Environmental protection | IP65 (NEMA 4) |
