- Consistent 3 deg C dew point for reliable moisture removal.
- Protects downstream equipment from corrosion and water damage.
- Energy-efficient operation with minimal internal friction.
- Low maintenance requirements due to simplified mechanical design.
- Suitable for a wide range of compressed air applications.
- Reliable operation in demanding industrial environments.

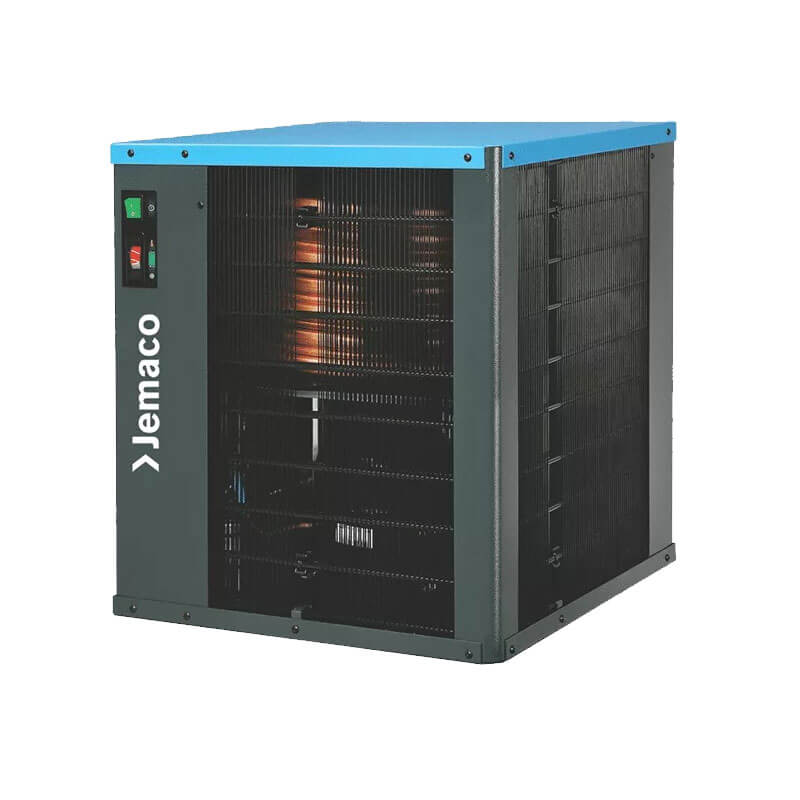

TX Series Refrigerated Compressed Air Dryer
Non-cycling refrigerated drying with stable 3 deg C dew point performance for industrial compressed air systems.
Product Description
TX Series Refrigerated Compressed Air Dryer
Reliable non-cycling refrigerated drying for consistent moisture control in compressed air systems.
TX Series dryers use a proven refrigeration process to cool compressed air, condense moisture, and separate liquid before distribution through the air network.
The range is engineered for industrial environments where dependable, low-complexity operation is required.
A patented heat exchanger design with only two moving parts helps minimise wear and maintenance demand while sustaining stable performance.
The series delivers a consistent 3 deg C pressure dew point to help protect downstream tools, valves, instrumentation, and process equipment.
With capacities suited to small and mid-range installations, TX models provide practical and efficient drying for workshops and factories.
Operational Benefits
Engineering Features
- Patented heat exchanger technology with only two moving parts.
- Non-cycling refrigeration design for stable continuous operation.
- Integrated timed electric condensate drain for automatic moisture removal.
- Finned condenser coil supports effective gas cooling without an electric condenser fan.
- Designed for pressures up to 12 Bar G.
- Compact industrial design suitable for workshop and factory installations.
Model Specifications
| Model | Flow Capacity (Nm3/min) | Dimensions (H x W x D mm) | Connection | Weight (kg) |
|---|---|---|---|---|
| TX 15 K | 0.5 | 382 x 320 x 320 | 1/2 in | 20 |
| TX 25 K | 1 | 568 x 368 x 394 | 3/4 in | 32 |
| TX 35 K | 1.33 | 568 x 368 x 394 | 3/4 in | 32 |
| TX 50 K | 1.67 | 568 x 500 x 500 | 3/4 in | 44 |
FAQ
FAQ - TX Series Refrigerated Compressed Air Dryer
What maintenance does the TX Series require?
Maintenance requirements are minimal due to the patented heat exchanger design with only two moving parts. Routine inspections and periodic checks of the electric condensate drain are typically sufficient.
Can the TX Series handle different load requirements?
Yes. The TX Series offers multiple model capacities ranging from 0.5 to 1.67 m3/min, allowing the dryers to accommodate different compressed air demands.
Will the TX Series increase energy consumption?
No. The simplified internal design helps reduce friction and temperature fluctuations, resulting in efficient energy usage and lower operational costs.
How does the TX Series protect compressed air systems?
Each unit maintains a stable 3 deg C pressure dew point, removing moisture from compressed air and protecting downstream equipment such as pneumatic tools, valves, and instrumentation.
Is the TX Series suitable for demanding industrial environments?
Yes. The dryers are designed to operate reliably at pressures up to 12 Bar G and in industrial conditions with ambient temperatures up to 43 deg C.
Operating and Rating Conditions
- Rating conditions: 42 deg C inlet temperature, 6.9 bar g inlet pressure, 100 percent relative humidity, and 35 deg C ambient temperature.
- Maximum and minimum inlet pressure: 9.9 bar G and 2 bar G.
- Maximum and minimum inlet air temperature: 60 deg C and 4 deg C.
- Maximum and minimum ambient air temperature: 43 deg C and 2 deg C.
