- Consistent 3 deg C dew point for effective moisture removal.
- Compact footprint suitable for smaller installations and restricted spaces.
- Protects downstream equipment from corrosion and moisture damage.
- Reliable performance across a range of compressed air applications.
- Low operating complexity with straightforward installation.
CDK 3-8S Refrigerated Compressed Air Dryer
Compact non-cycling refrigerated drying with stable 3 deg C dew point control for smaller compressed air systems.
Product Description

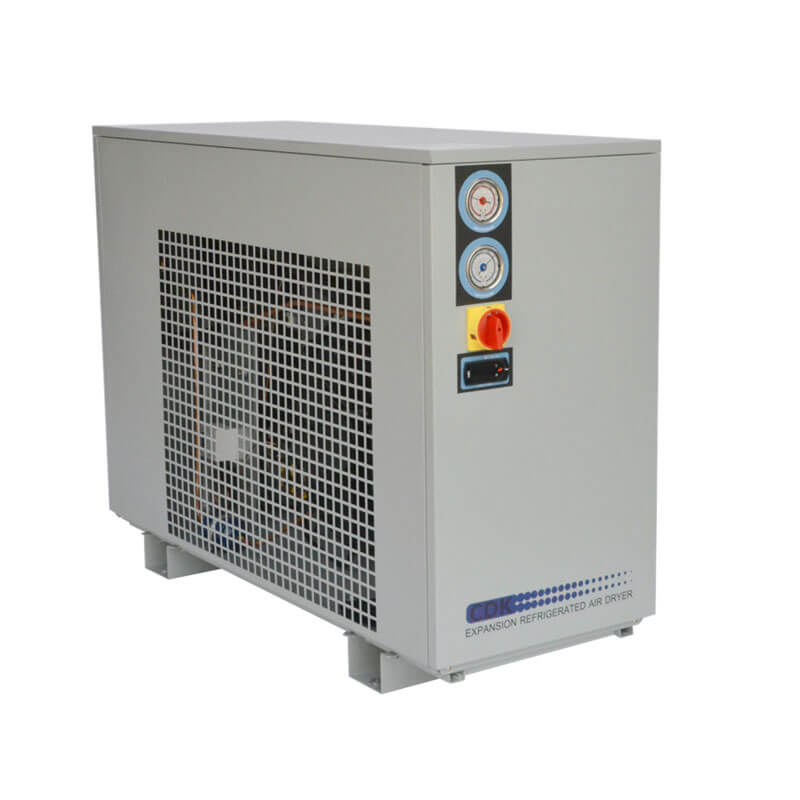

CDK 3-8S Refrigerated Compressed Air Dryer
Compact refrigerated drying for smaller systems and point-of-use compressed air applications.
The CDK 3-8S range provides clean, dry compressed air by cooling air through a refrigeration cycle and separating condensed moisture before downstream distribution.
A plate-to-plate heat exchanger and advanced separator design maintain a stable 3 deg C pressure dew point across varying operating conditions.
This moisture control helps protect pneumatic tools, valves, and other compressed air equipment from corrosion and contamination.
The compact air-cooled design supports straightforward installation where floor space is limited.
Models are designed for demanding industrial use with operating pressures up to 16 bar.
Operational Benefits
Engineering Features
- Efficient plate-to-plate heat exchanger for improved cooling performance.
- Advanced separator design supports effective condensate removal.
- Non-cycling refrigeration system for stable drying operation.
- Air-cooled configuration simplifies installation and maintenance.
- Designed for operating pressures up to 16 bar.
- Compact industrial design for workshops and production facilities.
Model Specifications
| Model | Flow Capacity (Nm3/min) | Dimensions (H x W x D mm) | Connection | Weight (kg) |
|---|---|---|---|---|
| CDK - 3S | 0.6 | 382 x 450 x 430 | 1/2 in | 31 |
| CDK - 5S | 0.8 | 382 x 450 x 430 | 1/2 in | 32 |
| CDK - 8S | 1.1 | 382 x 450 x 430 | 1/2 in | 33 |
| CDK - 3SA | 0.6 | 382 x 450 x 430 | 1/2 in | 31 |
| CDK - 5SA | 0.8 | 382 x 450 x 430 | 1/2 in | 32 |
| CDK - 8SA | 1.1 | 382 x 450 x 430 | 1/2 in | 33 |
FAQ
FAQ - CDK 3-8S Refrigerated Compressed Air Dryer
Is the CDK 3-8S series reliable for continuous operation?
Yes. The CDK 3-8S dryers are designed for consistent, reliable performance, delivering stable drying results across different operating conditions.
Will the dryer maintain a steady dew point?
Yes. The system maintains a consistent 3 deg C pressure dew point, helping remove moisture effectively from compressed air systems.
Is the dryer complicated to operate?
No. The units use a simple non-cycling refrigeration design, making them straightforward to operate with minimal training required.
Can the CDK 3-8S dryers handle high pressures?
Yes. These dryers are designed to operate at pressures up to 16 bar, making them suitable for a wide range of industrial compressed air applications.
Are the units suitable for installations with limited space?
Yes. The compact air-cooled design allows easy installation in smaller facilities or restricted equipment rooms.
Is maintenance difficult?
No. The design allows easy access to components for routine inspections and servicing, helping reduce maintenance time and downtime.
Operating and Rating Conditions
- Rating conditions: 42 deg C inlet temperature, 6.9 bar g inlet pressure, 100 percent relative humidity, and 35 deg C ambient temperature.
- Maximum and minimum inlet pressure: 9.9 bar G and 2 bar G.
- Maximum and minimum inlet air temperature: 60 deg C and 4 deg C.
- Maximum and minimum ambient air temperature: 43 deg C and 2 deg C.
