- Reliable 3 deg C dew point for consistent moisture removal.
- Suitable for large industrial compressed air systems.
- Protects downstream equipment from corrosion and contamination.
- Flexible installation options with air-cooled or water-cooled models.
- Durable construction designed for continuous industrial operation.

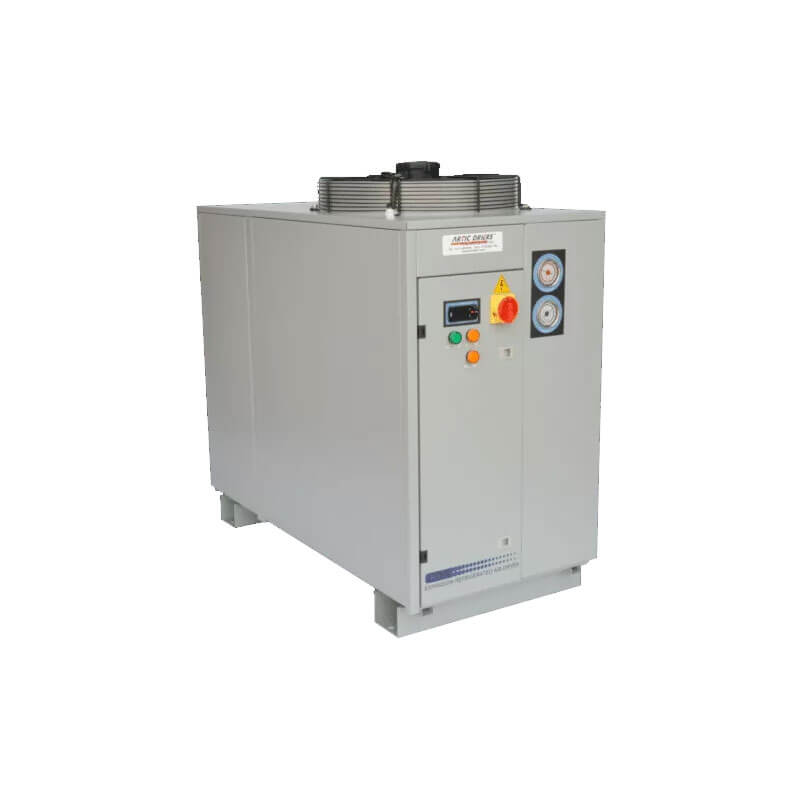

CDK 10SA-2500SA Refrigerated Compressed Air Dryer (Air or Water Cooled)
High-capacity refrigerated drying with stable 3 deg C dew point performance for large compressed air systems.
Product Description
CDK 10SA-2500SA Refrigerated Compressed Air Dryer
High-capacity industrial refrigerated dryers available in air-cooled or water-cooled configurations.
The CDK 10SA-2500SA series is designed for large compressed air installations requiring efficient and dependable moisture removal.
A patented 3-in-1 heat exchanger and integrated separator system cool compressed air, condense moisture, and remove liquid contaminants before distribution.
Stainless steel construction elements and protective anti-corrosion coatings support long-term operation in demanding industrial environments.
The dryers maintain a stable 3 deg C pressure dew point to reduce corrosion, contamination, and moisture-related downstream equipment damage.
Air-cooled and water-cooled options allow the installation to be matched to site conditions and operating constraints.
Operational Benefits
Engineering Features
- Patented 3-in-1 heat exchanger design for efficient cooling and moisture separation.
- Integrated separator system improves condensate removal efficiency.
- Stainless steel construction with corrosion protection coatings.
- High-capacity performance for demanding industrial air systems.
- Eco-friendly refrigeration compressors designed for efficient operation.
- Available in multiple models to match required airflow capacity.
Model Specifications
| Model | Power (kW) | Dimensions (mm) | Connection | Weight (kg) |
|---|---|---|---|---|
| CDK - 10SA | 1.7 | 382 x 502 x 480 | 1/2 in | 38 |
| CDK - 15SA | 2.2 | 382 x 502 x 408 | 3/4 in | 40 |
| CDK - 20SA | 3.4 | 393 x 723 x 650 | 3/4 in | 65 |
| CDK - 30SA | 5.4 | 393 x 723 x 650 | 1 in | 69 |
| CDK - 40SA | 6.9 | 404 x 875 x 761 | 1 1/2 in | 92 |
| CDK - 50SA | 8.5 | 404 x 875 x 761 | 1 1/2 in | 101 |
| CDK - 60SA | 10.1 | 451 x 1190 x 882 | 1 1/2 in | 115 |
| CDK - 75SA | 13.7 | 451 x 1190 x 882 | 2 in | 135 |
| CDK - 100SA | 18.7 | 451 x 1190 x 882 | 2 in | 145 |
| CDK - 150SA | 28.7 | 588 x 1204 x 1005 | 2 1/2 in | 198 |
| CDK - 175SA | 34.9 | 588 x 1204 x 1005 | 2 1/2 in | 208 |
| CDK - 200SA | 37.4 | 588 x 1204 x 1005 | 3 in | 225 |
| CDK - 250SA | 44.9 | 588 x 1204 x 1005 | 3 in | 256 |
| CDK - 300SA | 53.6 | 1004 x 1560 x 1615 | 4 in FL | 380 |
| CDK - 350SA | 59.8 | 1004 x 1560 x 1615 | 4 in FL | 400 |
| CDK - 400SA | 76 | 1004 x 1560 x 1615 | 5 in FL | 450 |
| CDK - 500SA | 89.7 | 1004 x 1560 x 1615 | 5 in FL | 510 |
| CDK - 600SA | 110.9 | 1200 x 2200 x 1900 | 6 in FL | 930 |
| CDK - 700SA | 119.6 | 1200 x 2200 x 1900 | 6 in FL | 1050 |
| CDK - 800SA | 152 | 1200 x 2200 x 1900 | 6 in FL | 1120 |
| CDK - 1000SA | 179.4 | 1200 x 2860 x 1900 | 8 in FL | 1260 |
| CDK - 1200SA | 211.8 | 1200 x 2860 x 1900 | 8 in FL | 1580 |
| CDK - 1500SA | 230.5 | 1200 x 3200 x 2050 | 10 in FL | 2200 |
| CDK - 2000SA | 355.1 | 1200 x 5000 x 2050 | 12 in FL | 2400 |
| CDK - 2500SA | 423.7 | 1200 x 5000 x 2050 | 12 in FL | 3100 |
FAQ
FAQ - CDK 10SA-2500SA Refrigerated Compressed Air Dryer
What type of cooling options are available for the CDK 10SA-2500SA series?
The dryers are available in air-cooled and water-cooled configurations, allowing installations to be adapted to specific site conditions and cooling requirements.
What dew point performance can be expected?
The system maintains a stable 3 deg C pressure dew point, ensuring effective moisture removal and protection for downstream equipment.
Are these dryers suitable for large industrial systems?
Yes. With capacities ranging from 1.7 to 423.7 m3/min, the CDK 10SA-2500SA series is designed for large-scale compressed air installations.
What compressors are typically used in this dryer range?
The dryers utilise reliable refrigeration compressors from manufacturers such as Copeland, Hitachi, or Mitsubishi, depending on the model.
How does the dryer ensure efficient moisture removal?
A patented 3-in-1 heat exchanger and separator design cools the compressed air efficiently and removes condensate before the air enters the distribution system.
Are the dryers built for demanding industrial environments?
Yes. The units feature corrosion-resistant construction, protective coatings, and durable components, making them suitable for continuous industrial operation.
Operating and Rating Conditions
- Rating conditions: 42 deg C inlet temperature, 6.9 bar g inlet pressure, 100 percent relative humidity, and 35 deg C ambient temperature.
- Maximum and minimum inlet pressure: 9.9 bar G and 2 bar G.
- Maximum and minimum inlet air temperature: 60 deg C and 4 deg C.
- Maximum and minimum ambient air temperature: 43 deg C and 2 deg C.
